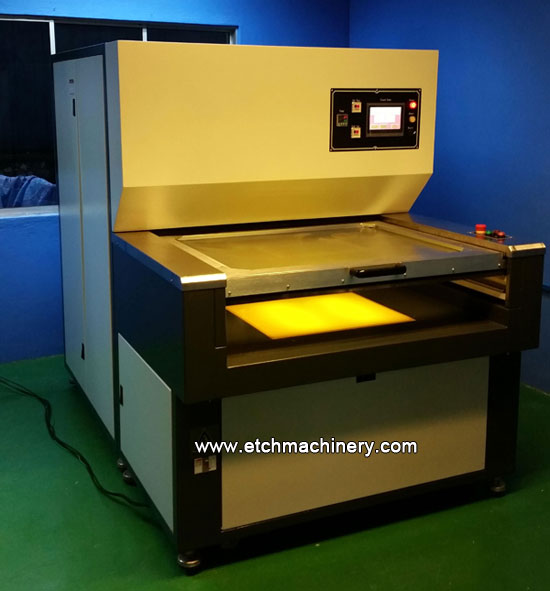

Double sides UV LED dry film Exposure machine for PCB making


Double sides UV LED Exposure machine

Features: Double sides UV LED dry film Exposure machine for PCB making Professional for fine line exposure.

It can keeping the working temperature in 18-25℃ to get best exposure effection and enable a long times continue exposing works.Quality and stable performance.

Contact Us Regarding Product

Video link: https://www.youtube.com/watch?v=YjjkIzvdE2c&feature=youtu.be

Main technical parameter:
Name:LED Precision Exposure Machine
Model:GE-LED700
Power Supply:380V/50HZ/60HZ
Expose Size:650*850mm
Average strength: ≥95%
Tolerance:+/-0.02mm
Cooling system:water cooling system
Machine Dimension:L*W*H=2100*1200*1900mm
Machine Weight:1200KGS
Automatic Control System:
Automatic Exposure times Control System
Vacuum Pressure System
Windy Cooling System
Long time Exposing Ability


LED Precision Exposure Machine Video



  • Offset Plate UV Exposure Machine
  • Model Number:GE-B2
  • Working size: 800*1000mm
  • Outsize: 1100*1100*1200mm
  • Vacuum Pressure System
  • Windy Cooling System
  • This Offset Plate Exposure Machine have electric shutter control system to operate conveniently and quickly; Wind cooling system to working continue and long times;
  • Double Side UV Exposure Machine
  • Model Number:GE-B650
  • Working size: 650*850mm
  • Outsize: 2200*1430*1750mm
  • Vacuum Pressure System
  • Windy Cooling System
  • This machine is suitable for double-sided exposure of metal plate, metal crafts, etching and cutting process.
  • Double side UV LED dry film Exposure machine for PCB making
  • Model: GE-UV700
  • Exposure area: 1060*700mm
  • Resolution:50um
  • Dimension(L*W*H):2700*1630*1750mm
  • This Double sides UV LED dry film Exposure machine is an ideal equipment for making PCB. This machine is specialized in the mass production of various kinds of dry film, wet film, inner layer and outer layer.
  • Large size Screen Printing Plate Vacuum Exposure Machine
  • Model: GE-B48
  • Exposure area: 1500*3000mm
  • Exposure type: Single side
  • Dimension(L*W*H):1600*3200*1200mm
  • Large size Screen Printing Plate Vacuum Exposure Machine Exposure area is 1500*3000mm ,non-standard product can be tailor-made by your requirements.The position of the exposing lamp can be freely adjusted in accordance to the printing frame sizes.
