Hot air drying machine

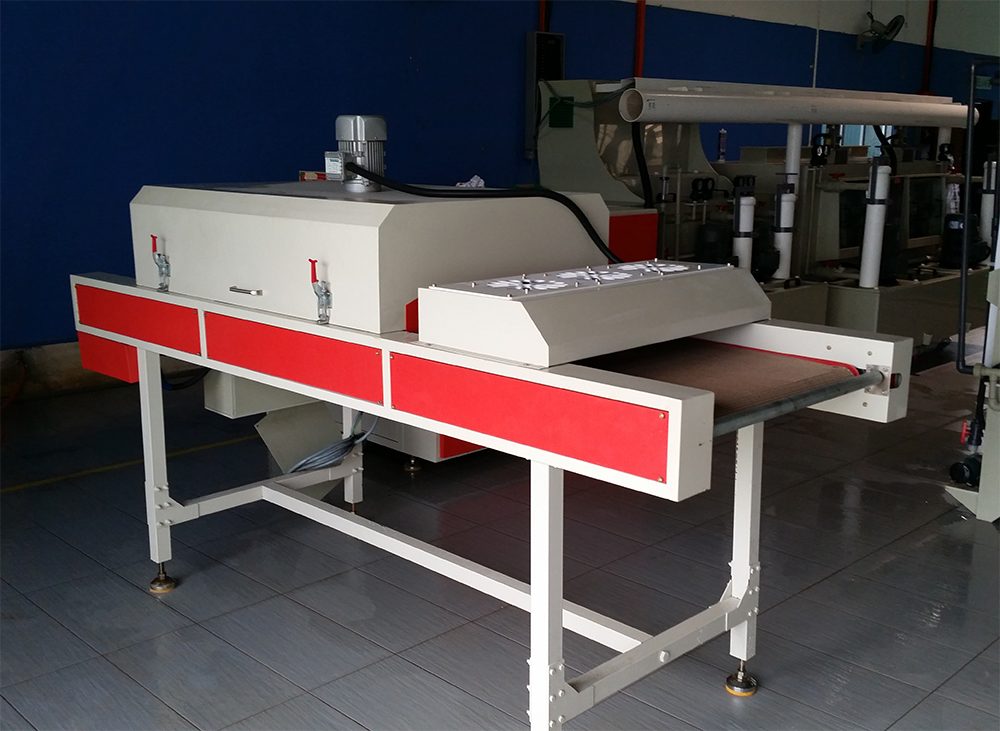

Hot air drying Machine

Features: This Automatic drying Machine is for drying photoresist ink and priting ink use .The whole structure is compact, small in volume, easy to operate and move.

Contact Us Regarding Product

Process flow: Load → Hot wind drying → Cold wind drying → Unload

Main technical parameter:
Working width:650mm
Working height:850mm (+/50mm adjust)
Min / Max board size:120*80mm / 500*500mm
drying system:Hot windy drying
Workpiece thickness:0.2~3.2mm
Working Temperature:35~55 ℃
Conveyor Speed:0.5~6m/min
Machine dimension :1200*700*1550mm

Product Image Details

etching machine
Transport Conveyor with Wheels, Rollers

  8000 thin Material Transport Conveyor with   patented   S-Wheels, Inter-digitating Rollers
control panel

Developer, Etcher and Stripper Lids and Doors are sealed with GOLDEN EAGLE's Patented Air Seal for solution and fume containment.
High temperature (up to 100) resist German PP material

Integrated inline filter with O-ring seal sample ports and easy pump maintenance
Pressure gauge & pump
