photosensitive ink coating machine


photosensitive ink coating machine (2)

Features:

This machine is a roller-type photosensitive ink coating machine. You can use this machine to finish single side or double side coating work. This machine includes base and the transmission mechanisms, and the transmission output, input and output wheel group. Coating roller wheel surface with precision screw thread . The machine is suitable for large metal photosensitive coating.

Contact Us Regarding Product

Process flow:

photosensitive ink → exposure → developing → baking /drying → etching → stripping dry film

Main technical parameter:

Power: 0.5KW/220V/50Hz

Working width: 600mm±0.05mm

Working height: 850 +/- 50mm

Photosensitive ink thickness: 10~25um (or 25~40um.)

Metal plate thickness: 0.05mm ~ 5mm

Conveyor system: Rubber roll or 304 SS guide wheel,gear drive;

Conveyor speed: 0~20m/min (adjust available)

Rubber roll: Scraper Diameter: 85mm

Coating roller: out-diameter:120mm,

inside-diameter:85mm

Machine size: 820*1280*1286mm

Weight: around 280KG

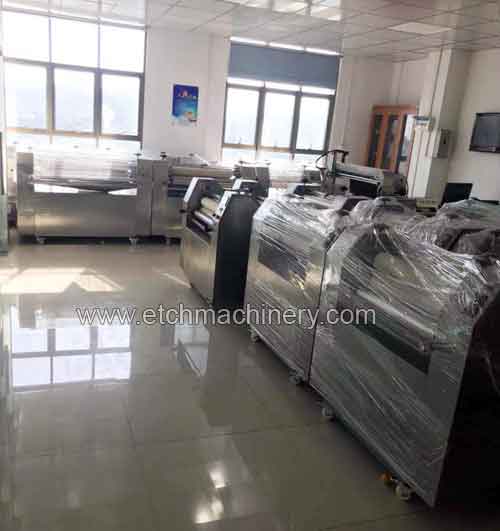

photosensitive ink coating machine


photosensitive ink coating machine (2)
photosensitive ink coating machine
