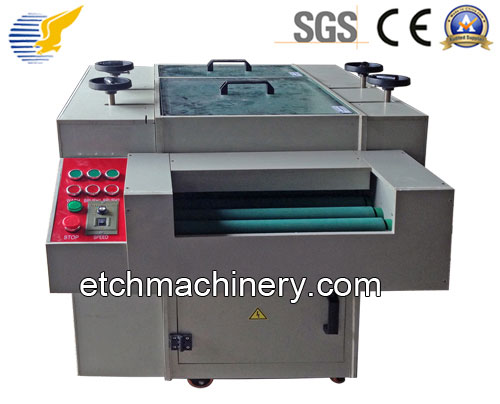

Small PCB Brushing Machine

PCB Grinding Brushing Machine

Features: This PCB Brushing machine can remove the oxide and dust of PCB with high speed and efficacy. And it can save more power and water advance for it rationalization structure.

Contact Us Regarding Product

Process flow: Load → Double-sided brushing → Pressure Washing → Unload

Main technical parameter:
Power:380V/50HZ 380V/60HZ
Working Width:650mm
Working height:850mm (+/50mm adjust)
Min / Max board size:120*80mm / 500*500mm
Brush Size:500# 800# 800#
Grind System:Oscillate system
Working Thickness:0.2-3.2mm
Conveyor Speed:0.5~6m/min
