PCB Production Line · Machine #20

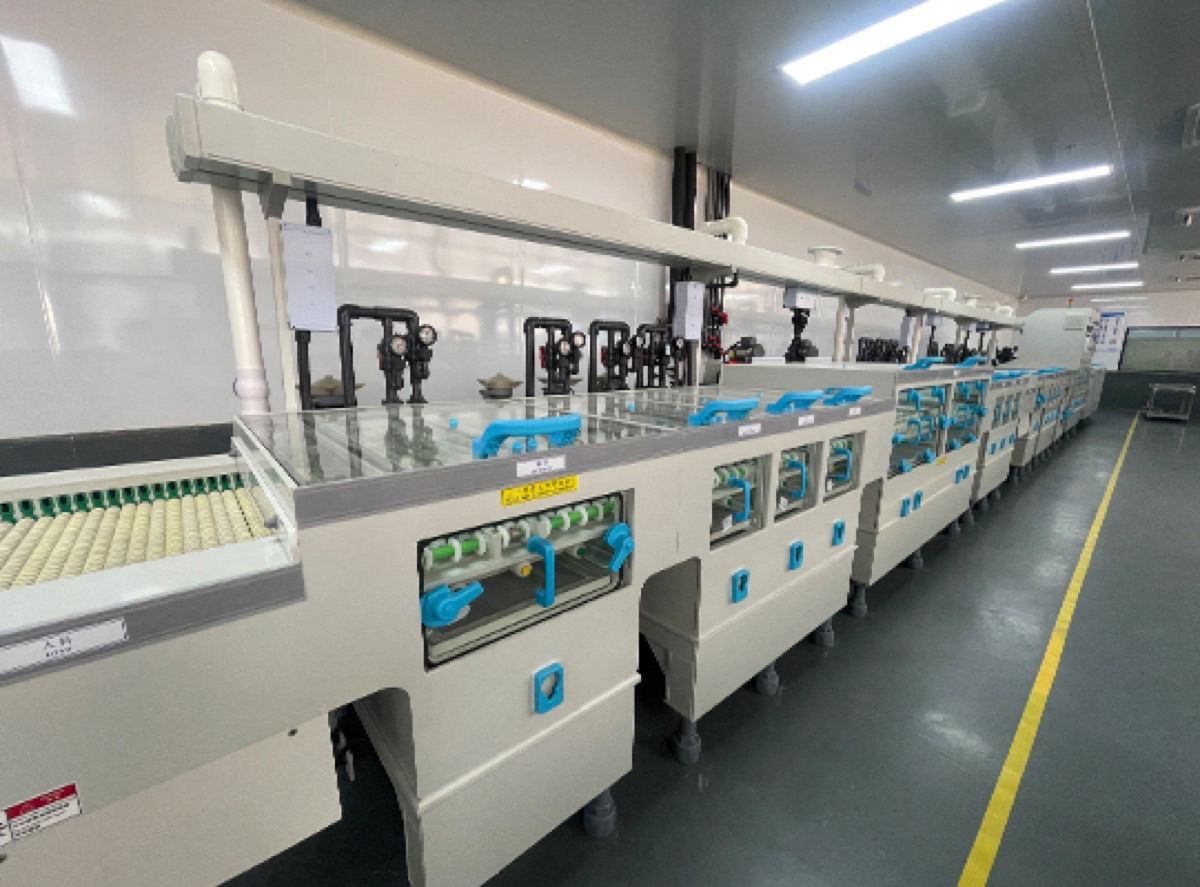

HASL Post-Processing Equipment
Model: Tin-spray post-processor
Cleans residual soldering flux and other organics after tin spraying.
Request a quoteTechnical Parameters
| Working width | 600 mm |
|---|---|
| Plate thickness | 0.2–3.2 mm |
| Brush | Ø103 × 615 mm @ 1500 rpm |
| Hot water temp | RT – 55 °C |
| Hot air temp | RT – 120 °C |
| Power | 21 kW |
This is a parameter-overview page. A more detailed product page with full specifications, optional configurations, and process recommendations is being prepared. In the meantime, please contact our engineers for the full datasheet and pricing.
