Embossed stainless steel press plate Etching Machine

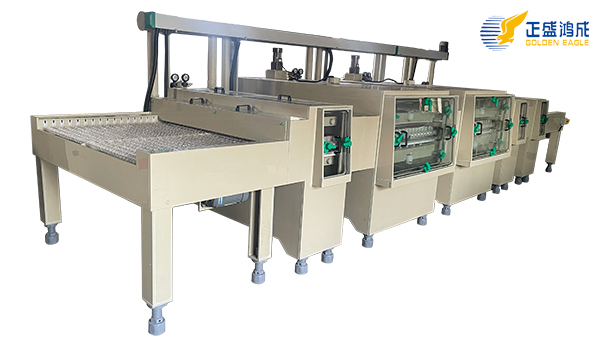

Stainless Steel Press Plate etching machine
Features: This etching machine can be used to etching Deep embossed stainless steel press plate for hpl furniture . Etching Materials can be stainless steel, copper, aluminium and so on. Mainly products are stainless steel board, large sizedecoration sheet and many others press plates.
Process flow: Load → Etching1 → Etching2→ Unload
Main technical parameter:
Model:GE-EP1000
Power:380V/50HZ
Working width:1550mm /1300mm/1000mm
Working height:850mm (+/50mm adjust)
Min board size:180*180mm
Etching system:Double Spray with Oscillate system
Workpiece thickness:0.2~5.5mm
Working Temperature:35~55 ℃
Conveyor Speed:0～6m/min (Control)
Heater/Cooling Pipe :Titanium Pipe
Machine dimension :3500*2300*1850mm
Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material
chemical eching press plates sample for hydraulic press lamination
Decorative stainless steel sheet Etching sheet
chemical eching press plates for hydraulic press lamination
embossed Press Plate Etching
photo chemical depth etched brass sheet
Whole process equipment for chemical eching press plates ：
- Manual screen printing machine full size
- Model Number: GE-JM650W
- Power: 4.7KW/380V
- Print size:maximum 1500*2500mm
- Table size: 1600*2600mm
- This machine is primarily used to apply photosensitive ink onto the surface of metal sheets or to print patterns or characters, facilitating subsequent etching processes.x
- Large size Screen Printing Plate Vacuum Exposure Machine
- Model: GE-B48
- Exposure area:1500*3000mm
- Exposure type: Single side
- Dimension(L*W*H):1600*3200*1200mm
- Large size Screen Printing Plate Vacuum Exposure Machine Exposure area is 1500*3000mm ,non-standard product can be tailor-made by your requirements.The position of the exposing lamp can be freely adjusted in accordance to the printing frame sizes.
- UV curring Machine for screen printing
- Model： GE-HD1250
- Power:12kw/380V
- Temperature:RT to 200°C
- Drying size:1250mm in width, Length is unlimited
- Drying type: UV curring
- This UV curring Machine is for drying photoresist ink and priting ink use .This machine can dry large sizes 4*8 feet .
