flexible Cutting Dies Etching Machine


flexible Cutting Dies Etching Machine



video shoing  how to produce cutting die ?



Features: flexible Cutting Dies Etching Machine is a photoengraving machines for Steel or high-carbon steel plate mold pretreating etching to advance following engraving processing. After etching, the cutting knife-edge and knife depth is etched out. Then the following CNC engraving Knife sharpening works is easy and fast. It can save lots of unnecessary cost compare to use CNC engraving to working completely.

Contact Us Regarding Product

Process flow: Load → Etching → Unload

Main technical parameter:
DB5060 Cutting Dies Etching machine
Power: 5.5kw/380V
Etching size: 500*600mm
Out size: 1850*1500*1550mm
Control system: Temperature, Speed, Pressure, Network Filter

Etching cutting die sample photo:

flexible cutting Dies etching

flexible cutting Dies etching

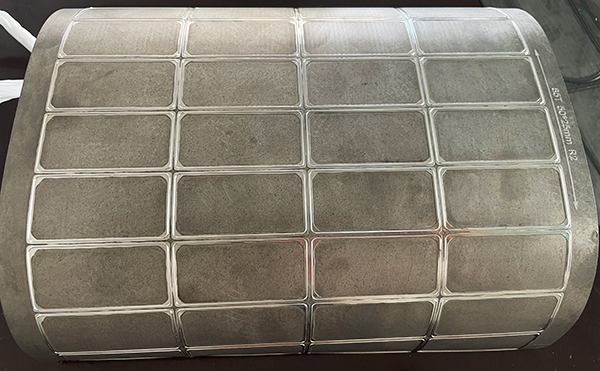

chemical etched flexible dies

steel cutting die etching

etching cutting die for sticker

etching cutting die for sticker

steel cutting die etching

steel cutting die etching

flexible cutting Dies etching

flexible cutting Dies etching





Whole set machine list for chemical etching flexible die

photosensitive ink coating machine

photosensitive ink coating machine

  • photosensitive ink coating machine
  • Model: GE-PC600
  • Working width: 600mm/700mm/800mm
  • Photosensitive ink thickness: 10~25um (or 25~40um.)
  • Machine size: 820*1280*1286mm
  • This machine is a roller-type photosensitive ink coating machine. You can use this machine to finish single side or double side coating work. Coating roller wheel surface with precision screw thread .
LED UV exposure machine single side

LED UV exposure machine

  • LED UV exposure machine single side
  • Model Number:GE-LED1400
  • Table size: 1800*1400mm
  • Vacuum Pressure System
  • Power:1KW/220V/50Hz
  • light source： Taiwan LED chip
  • LED UV light source is a kind of light emitting diode, which has the characteristics of light stability, uniformity and long service life.
Flexible Cutting Dies Etching Machine

Flexible Cutting Dies Etching Machine

  • Flexible Cutting Dies Etching Machine
  • Model: GE-DB5060
  • Working size: 500mm*600mm/600*800mm/800*1000mm
  • Control system: Temperature, Speed, Pressure, Network Filter
  • Out size: 1850*1500*1550mm
  • flexible Dies Etching Machine is a photoengraving machines for Steel or high-carbon steel plate mold pretreating etching to advance following engraving processing. After etching, the cutting knife-edge and knife depth is etched out. Then CNC engraving Knife sharpening.
Conveyor Cutting Dies Etching Machine

Conveyor Cutting die Etching washing machine

  • Conveyor Cutting die Etching washing machine
  • Model: GE-JM650
  • Working size: 650mm width
  • Control system: Temperature, Speed, Pressure, Network Filter
  • Out size: 4850*1700*1550mm
  • Conveyor Cutting die Etching washing machine is a photoengraving machines for Steel Die(suitable for die-cutting jobs with short to medium runs) or high-carbon steel plate mold pretreating etching to advance following engraving processing.
