Photoresist Coating Machines for PCB and Metal Etching Industries Technology Explained
Photoresist coating machines apply light-sensitive layers to substrates, enabling precise pattern definition for circuit imaging and etching processes. These systems are vital for achieving high-resolution designs in electronics and metalwork, with variations including dry film laminators, liquid photoresist coaters, solder mask applicators, and silk screen printers.
Key Features of Modern Coating Systems:
Modern photoresist coating machines incorporate advanced technologies such as precision applicators, automated thickness control, temperature-regulated environments, and integrated drying systems. These features ensure uniform coating consistency, reduced chemical usage, and high-throughput production, supporting stringent quality standards in industrial applications.
Applications in PCB Manufacturing:

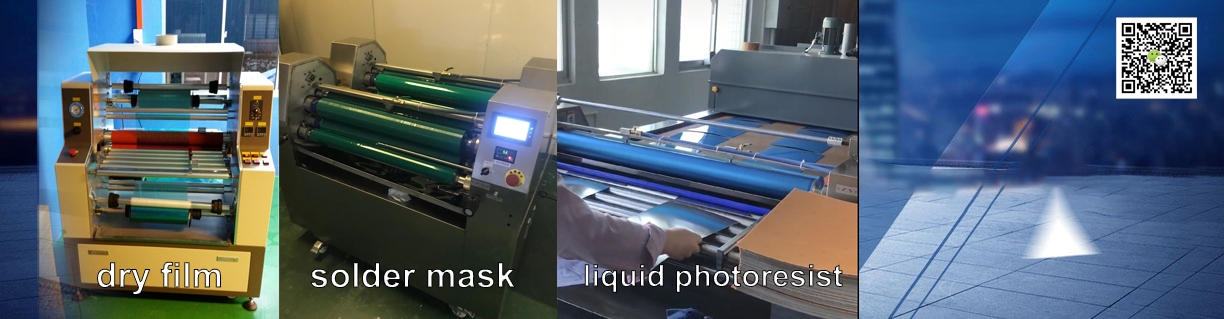

- Dry Film Laminator: Bonds dry film photoresist to copper-clad layers for inner and outer circuit pattern imaging, ensuring reliable adhesion and minimal defects in multi-layer boards.

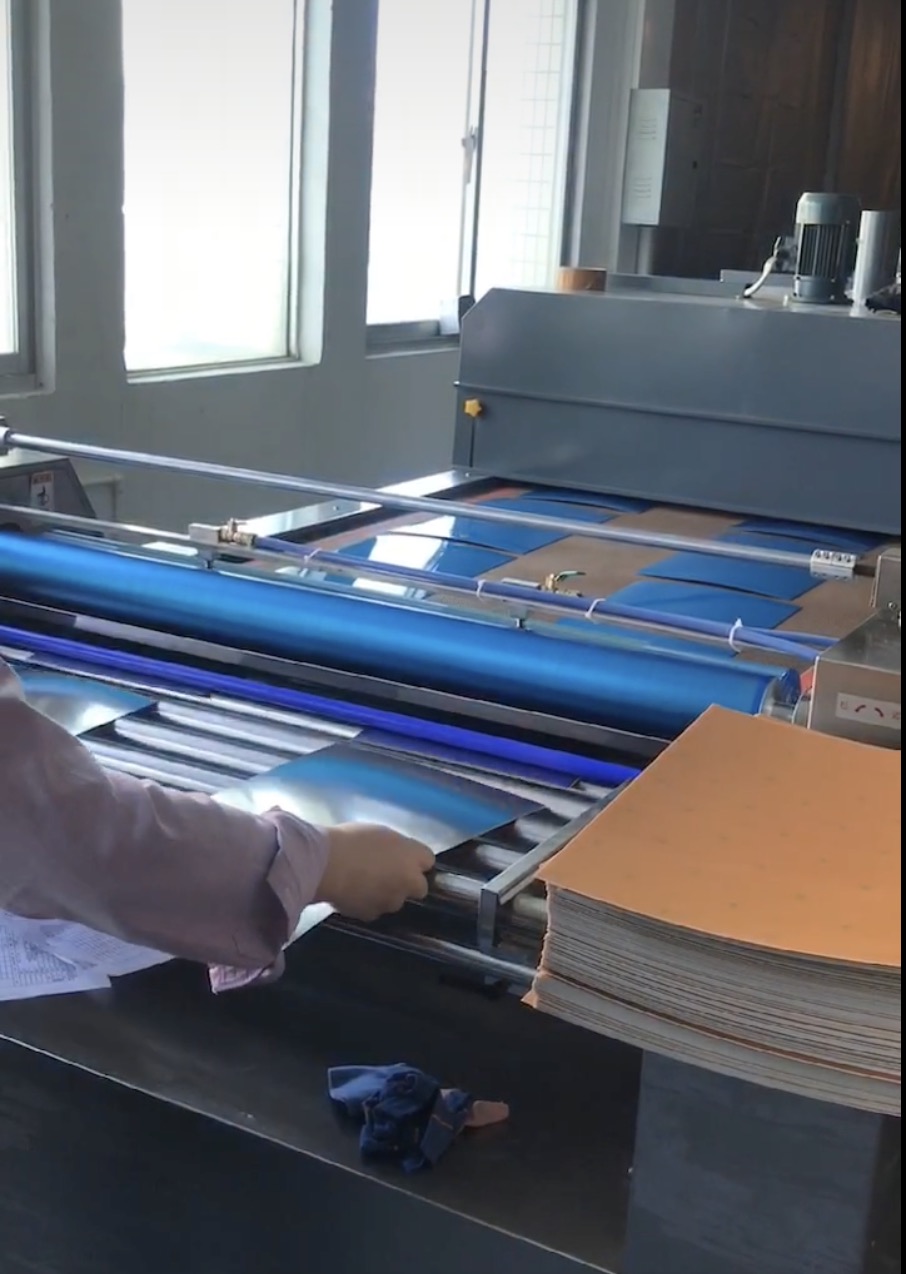

- Liquid Photoresist Coating: Applies liquid resist for ultra-fine patterns in high-density interconnect (HDI) and advanced PCBs, enabling high-resolution features essential for compact devices.
- Solder Mask Coating Machine: DDeposits solder mask layers with precise openings for component soldering, protecting copper traces and enhancing board durability against environmental factors.
- Silk Screen Printing Machine: Prints legends, identifiers, and markings on PCB surfaces using screen-based techniques, facilitating component placement and traceability in assembly.
Applications in metal etching:
- Precision Pattern Transfer: Coats photoresist on metal substrates to reveal intricate designs for jewelry, decorative items, and industrial components before acid etching.7
- Industrial Marking & Labeling: coating photosensitive material for Transfers logos, serial numbers, and safety markings onto metal surfaces for tools, machinery, and equipment plates.
- Artistic Metalwork: coating photorseist for Develops complex patterns on copper, brass, and silver sheets for handmade crafts, sculptures, and architectural elements.
- Tool & Mold Manufacturing: coating photosensitive material Develops micro-patterns on cutting dies and embossing tools for leather, textiles, and packaging industries.
