Developing Machine List

Small film Developing MACHINE for PCB

Small film Developing MACHINE for PCB

  • Small film Developing MACHINE for PCB
  • Model Number: GE-S400D
  • Working size: W400mm*L (L= length is not limited)
  • developing area length: 500mm
  • Outsize: 1250*1100*1200mm
  • Machine process: Loading-Developing-Cleaning-Sponge drying-Unloading
  • PCB Developer Machine is used for PCB photoresist film developer work. auto spray imaging Machine.
Double Side Spray developing Machine

Double Side Spray developing Machine

  • Double Side Spray developing Machine
  • Model Number: GE-S650D
  • Working size: W650mm*L (L= length is not limited)
  • developing area length: 1000mm
  • Outsize: 2250*1280*1200mm
  • Machine process: Loading-Developing-Unloading
  • Double Side Spray developing Machine is used for metal plate and PCB photoresist film developer work. auto spray imaging Machine.
PCB developing machine use Sodium carbonate development

PCB developing machine

  • PCB developing machine use Sodium carbonate development
  • Model Number: GE-D650W
  • Working size: W650mm*L (L= length is not limited)
  • developing area length: 1000mm
  • Pump washing :500mm
  • city washing:500mm
  • Machine process: Load → Developing → water washing1,2 → squeeze → Unload
  • PCB developing machine use Sodium carbonate development ,with water washing

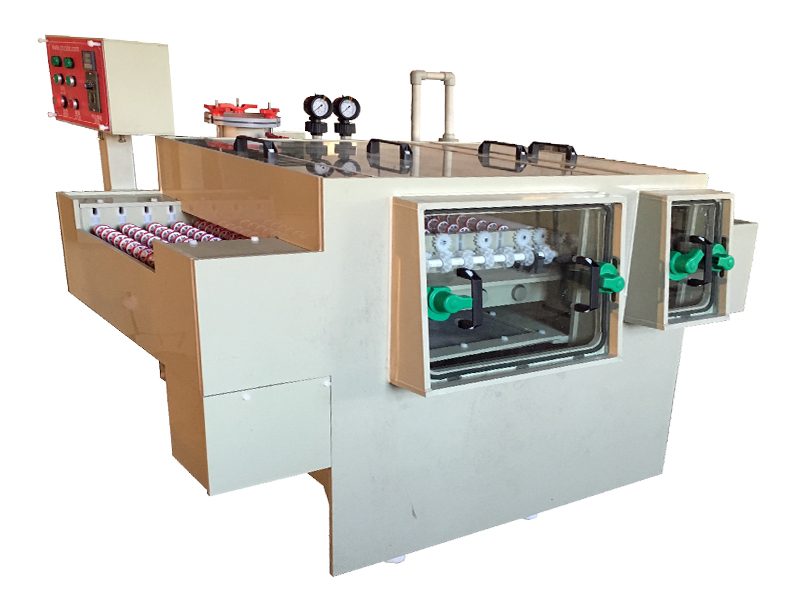

solder mask developing Machine

solder mask developing Machine

  • solder mask developing Machine with rinsing and drying
  • Model Number: GE-SRD650
  • Working size: W650mm*L (L= length is not limited)
  • developing area length: 1000mm
  • Outsize: 2850*1280*1200mm
  • Machine process: Load → Developing → water washing → squeeze→Air knife Drying → Unload
  • solder mask developing Machine with rinsing and drying used for PCB and other metal plate solder mask developing ,auto spray imaging Machine

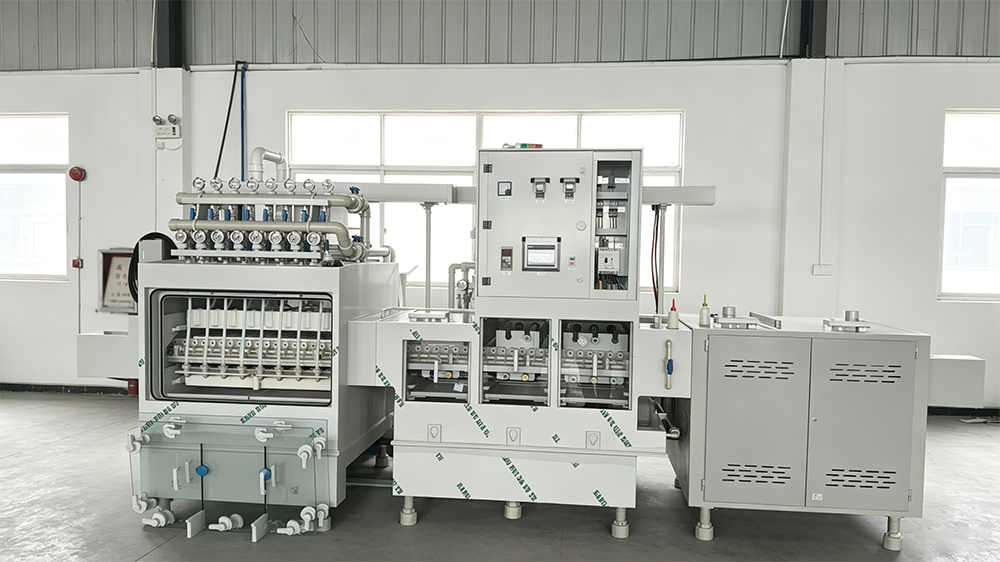

Photoresist developing cleaning drying Machine

Photoresist developing Machine

  • Photoresist developing cleaning drying Machine
  • Model: GE-XY650
  • Working size: W650mm*L (L= length is not limited)
  • Machine process: Load → Developing → water washing → squeeze→cold & hot Drying → Unload
  • Machine dimension :8000*1700*1850mm
  • The Photoresist developing cleaning drying Machine can be built for use with all common aqueous resists, including: dry film photoresists, liquid resists, and dry film and liquid solder mask resists.

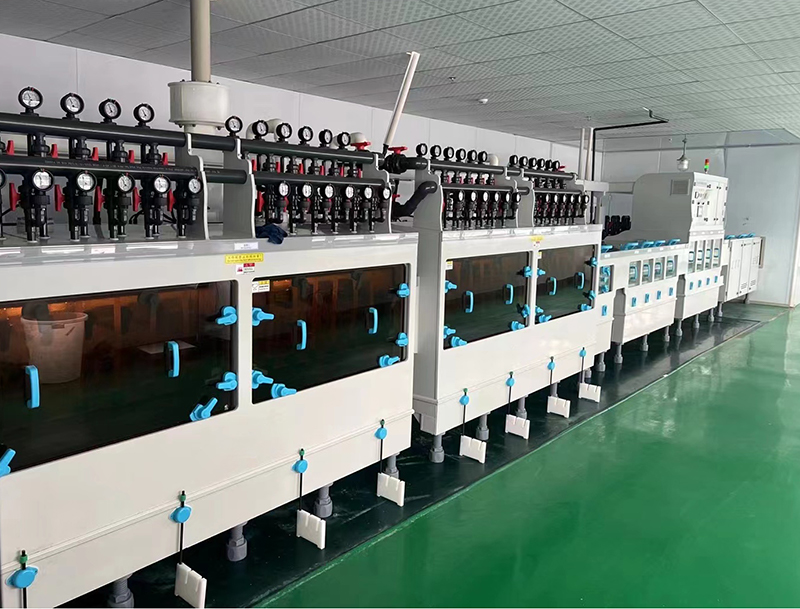

PCB DES(Developing,Etching,Stripping)Production Line

PCB DES(Developing,Etching,Stripping) Production Line

  • PCB DES(Developing,Etching,Stripping) Production Line
  • Model Number: GE-DES650
  • Process flow: Load → Developing → Pressure water Washing → running water washing → Blot up → cold windy drying → hot wind drying → checking → Etching1,2 → Etching3,4 → Pressure Washing → City Water Washing→ Checking →Stripping1,2 → Pressure Washing → City Water Washing → Blot Up → Cold & Hot Dry → Unload
  • This is an all-in-one line device with developing, etching, and stripping functions.
