PCB Finished Treatment Machine

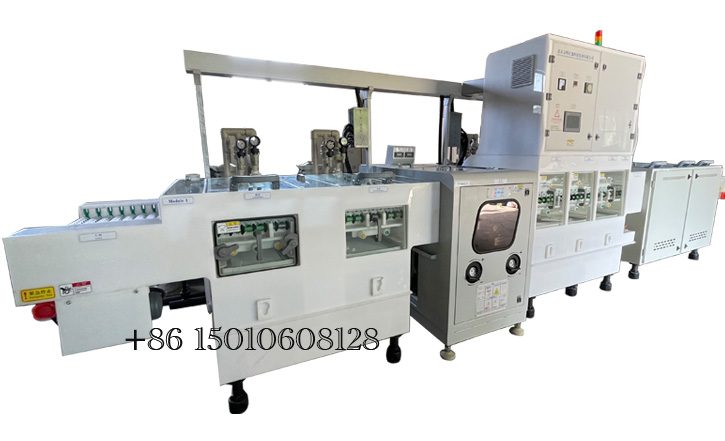

PCB Finished Treatment Machine

Features:This Washing & Drying line for PCB finished board Washing.

Contact Us Regarding Product

Process flow: Enter → Warm water washing → Scrubbing → Pressure Washing → Ultrasonic Washing → Washing → Sealing → Infrared drying → Output

Main technical parameter:
1. Power 380V/50Hz
2. Working size 600x6000mm
3. Conveyor speed 0.5~6m/min
4. Control system PLC control panel
5. Outsize 6415x1800x1850mm

Product Image Details

etching machine
Transport Conveyor with Wheels, Rollers

  8000 thin Material Transport Conveyor with   patented   S-Wheels, Inter-digitating Rollers
control panel

Developer, Etcher and Stripper Lids and Doors are sealed with GOLDEN EAGLE's Patented Air Seal for solution and fume containment.
High temperature (up to 100) resist German PP material

Integrated inline filter with O-ring seal sample ports and easy pump maintenance
Pressure gauge & pump
