Copper aluminum substrate PCB laser cutting machine

PCB laser cutting machine

  • Copper aluminum substrate PCB laser cutting machine
  • Model :GE-LCB6080
  • Maximum power of laser:500W / 1000W / 1500W / 2000w / 3000W
  • Wavelength:1070±10nm
  • Maximum positioning speed : 60m/min
  • Long term maximum cutting thickness（Aluminum ）:≤2mm /≤3mm / ≤4mm / ≤6mm / ≤6mm
  • There are various types of processing materials, including copper, aluminum, stainless steel, iron, PCB, and other materials

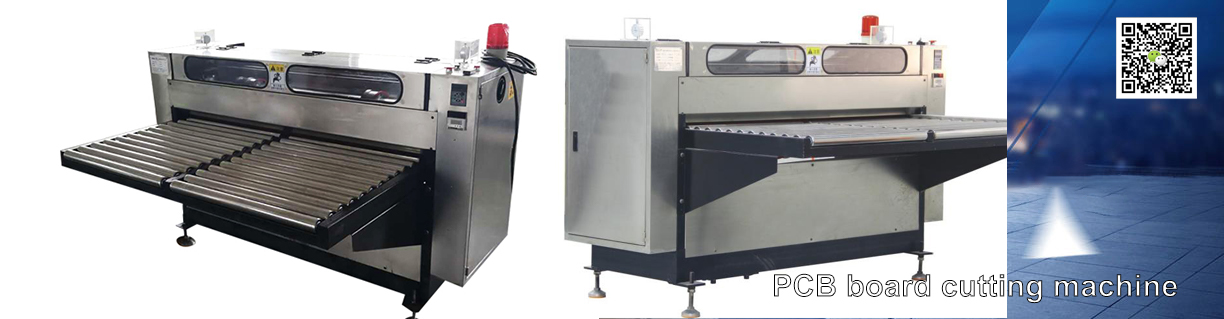

PCB board cutting machine

PCB board cutting machine

  • PCB Board cutting machine
  • Model :GE-1400GJ
  • Cut board size Width: 120mm-1.4m Length: 200mm-1.6m
  • Working substrate thickness: 0.12-3.0 (mm)
  • Machine size: L2000*W1310*H1300
  • usage :Cutting Aluminum PCB and FR4, Cardboard, fiberglass, bakelite raw material for matching size.
  • Multi-knife cutting up and down, precise size, convenient knife adjustment.
Electric Shearing Machine

Electric Shearing Machine

  • Electric Shearing Machine
  • Model: GE11G-3*1300
  • Maximum cutting thickness : 5mm
  • Cutting angle（°）:1°30′
  • size ：1000/1300/1600mm/2000mmwidth
  • This machine adopts steel welding structure, has the advantages of simple structure,convenient operation, beautiful appearance,low energy consumption, apply to PCB ,metallurgy, light industry, machinery, hardware and other 0.1~5.0mm of ordinary steel plate processing shear.
Manual Metal Shearing Machine

Manual Metal Shearing Machine

  • Manual Metal Shearing Machine
  • Model: GE11A*1300
  • Maximum cutting thickness : 1.5mm
  • size ：700/1000/1300mm width
  • Packing size (cm):140x76x115
  • N.W./G.W. (kg):365/410
  • The Manual shear is with both front and back gauge;High carbon and chrome steel blade;
  • Used for mild steel aluminum copper, brass zinc plastic and leads.
manual pcb board cutter

manual pcb board cutter

  • Manual PCB board cutter
  • Model: GE11A-1*400
  • Max cutting width：400mm
  • Cutting thickness:0.1-2 mm
  • Size: 420*400*130mm
  • weight：20kg
  • This machine is applied in cutting circuit board, as well as those sheets that made of aluminum, iron, copper, or plastic.
