PCB CNC Drilling and Routing Machines | High Precision PCB Manufacturing Equipment
CNC drilling and routing machines form the backbone of PCB fabrication, enabling precision hole creation and board contouring for electronic circuitry. These computer-controlled systems deliver micron-level accuracy in creating vias, through-holes, and complex board geometries essential for modern electronics across aerospace, medical, and telecommunications industries.
Key Features of Modern Drilling Systems:

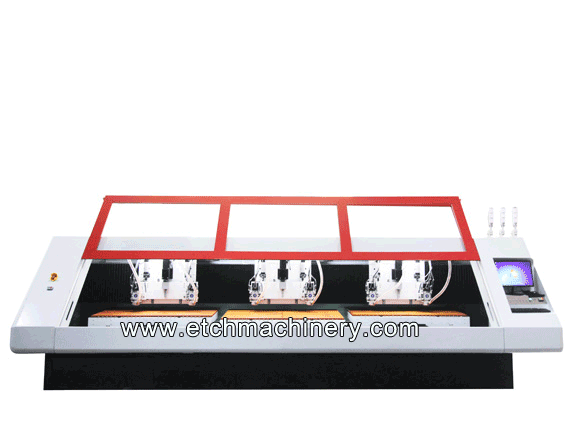

- Multi-Spindle Configurations: Simultaneous processing with 2-6 independent spindles for enhanced throughput
- High-RPM Precision Spindles: 60,000 RPM electro-spindles with < 0.02mm positional accuracy
- Adaptive Depth Control: Intelligent Z-axis calibration for consistent blind/buried via formation
- Automated Tool Changers: Quick-swap drill bit systems minimizing production downtime
- Vision Alignment Systems: CCD camera positioning for panel-to-panel registration accuracy
- Aynamic Routing Capabilities: DIntegrated milling for complex contours and edge finishing
Applications in PCB Manufacturing:
- Multi-Spindle Drilling Systems: Simultaneously process multiple panels for high-volume via drilling in multilayer boards, reducing cycle times by 40-60% compared to single-spindle units while maintaining ±0.025mm tolerance.
- Precision Routing Machines: Create complex board outlines, slots, and cutouts with smooth edge finishes, supporting advanced packaging designs and impedance-controlled RF circuits requiring strict dimensional stability.
- Laser Drilling & Cutting Systems: Generate microvias below 100μm in HDI designs and process aluminum/ceramic substrates with thermal-free ablation, enabling next-generation high-density interconnects.
- Through-Hole Drilling Systems: Execute high-aspect ratio hole drilling (15:1) in thick multilayer boards with specialized drill bits and chip evacuation systems, ensuring hole wall integrity for reliable plating.
- Prototyping & NPI Machines: Benchtop CNC systems supporting rapid design iterations with quick-setup fixtures and CAD/CAM compatibility for low-volume, high-mix production environments.
