PCB DES(Developing,Etching,Stripping) Production Line

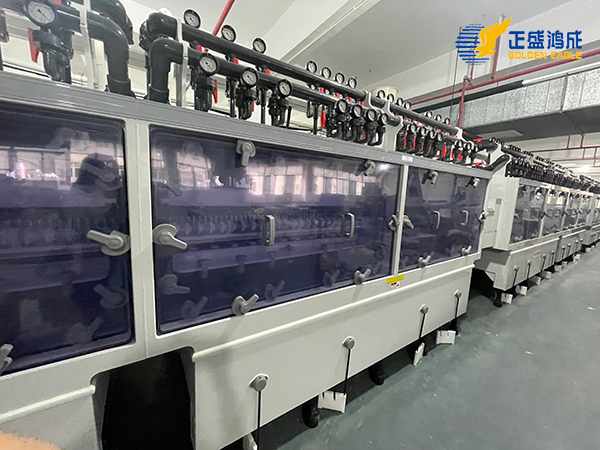

PCB DES Production Line PCB DES Production Line

Features:This is an all-in-one line device with developing, etching, and stripping functions. PCB DES(Developing,Etching,Stripping) Production Line for double-sided or multi layer PCB or thin copper etching uses with high precision. Our DES (Developing, Etching, Stripping) line is meticulously engineered for high precision metal etching and PCB manufacturing. Whether you're creating intricate metal components or sophisticated printed circuit boards, our DES line ensures unparalleled accuracy and efficiency. Discover the future of metal etching and PCB production with our advanced technology, designed to meet the highest standards of quality and precision. Join us in revolutionizing the manufacturing process with our innovative and reliable etching solutions.

Contact Us Regarding Product

Process flow: Load → Developing → Pressure water Washing → running water washing → Blot up → cold windy drying → hot wind drying → checking → Etching1,2 → Etching3,4 → Pressure Washing → City Water Washing→ Checking →Stripping1,2 → Pressure Washing → City Water Washing → Blot Up → Cold & Hot Dry → Unload

Main technical parameter:
Model:GE-DES650
Power:380V/50HZ/60HZ
Working width:650mm
Working height:850mm (+/50mm adjust)
Min / Max board size:50*50mm / 650mm*L
Etching system:Double Spray with Oscillate system
Workpiece thickness:0.2~3.2mm
Working Temperature:35~55 ℃
Conveyor Speed:0.5~6m/min
Heater/Cooling Pipe :Titanium Pipe
Machine dimension :25000*1700*1850mm
Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material

 DES line chemical etching Sample  (PCB/SST/brass/copper/titanium/alloy):

chemical etched printed circuit board

photo chemcial etched printed circuit board

chemical etched bipolar plate

chemical etched bipolar plate

etched titanium mesh for foldable screen smartphones

etched titanium foldable screen smartphones

photo etched speaker grilles

photo etched speaker grilles

  • Chemical Etching PCB Prototyping System
  • Model Number: GE-S400E
  • Working size: W400mm*L (L= length is not limited)
  • Etching area length: 500mm
  • Outsize: 1250*1100*1200mm
  • Machine process: Loading-Etching-Cleaning-squeeze-Unloading
  • This Small Chemical Etching Equipment is a chemical photoengraving processing equipments. It mainly used for laboratory .
  • Double Side Spray Acid Etching Machine for Nameplate & signage
  • Model Number: GE-S650
  • Working size: W650mm*L (L= length is not limited)
  • Etching area length: 1000mm
  • Outsize: 2250*1280*1200mm
  • Machine process: Loading-Etching-Unloading
  • This double side spray Acid etching machine is a chemical photoengraving processing equipment.This machine can use alkaline or acidic etching solution.
  • Aluminium PCB FR4 Etching Machine
  • Model Number: GE-JM650W
  • Working size: W650mm*L (L= length is not limited)
  • Et'ching area length: 1000mm
  • Outsize: 2850*1280*1200mm
  • Machine process: Load → Etching → water washing → squeeze→ Unload
  • Aluminium PCB FR4 Etching Machine for double-sided or single side Aluminium PCB and FR4 /LED or thin copper etching uses with high precision.
  • Dual Chamber high precision etching machine
  • Model Number: GE-JM650
  • Working size: W650mm*L (L= length is not limited)
  • Etching area length: 2000mm
  • Outsize: 3850*1580*1680mm
  • Machine process: Load → Etching → squeeze → Unload
  • This Dual Chamber high precsion etching machine Can be chemical milling TV shadow masks, Grids, shims, Washers, sieves, meshes, SMT, choppers, encoder, disks and so on.
  • photo engraving machine for stainless steel/brass/aluminium/steel
  • Model Number: GE-JM650-w
  • Working size: W650mm*L (L= length is not limited)
  • Etching area length: 2000mm
  • Outsize: 3850*1580*1680mm
  • Machine process: Load → Etching → squeeze → Unload
  • This photo engraving machine Can be chemical milling TV shadow masks, Grids, shims, Washers, sieves, meshes, SMT, choppers, encoder, disks and so on.
  • Ferric Etching Machine PhotoChemical Milling
  • Model Number: GE-SK9
  • Working size: W650mm*L (L= length is not limited)
  • Etching area length: 2000mm
  • Outsize: 4550*1580*1680mm
  • Machine process: Load → Etching → water washing→squeeze → Unload
  • The Ferric Etching Machine can be configured to do ferric chloride etching, as well as cupric chloride etching,used for photochemical milling filter meshes, seives, screens and grilles.
  • Photo chemical Etching Line for PCB
  • Model: GE-SWD9
  • Working size: W650mm*L (L= length is not limited)
  • Machine process: Load → Etching → water washing → squeeze→cold & hot Drying → Unload
  • Machine dimension :8000*1700*1850mm
  • photo chemical Etching Line for PCB for double-sided or multi layer PCB or thin copper etching uses with high precision.
  • 12 chamber etching machine for make Spinneret Extrusion Meltblown Die
  • Model: GE-JM650-12chamber
  • Working size: W650mm*L (L= length is not limited)
  • Machine process: Load → aicd rinse → Etching(12 chamber) → aicd rinse → water washing → squeeze → Unload
  • Machine dimension :28000*1700*1850mm
  • 12 chamber etching machine for make Spinneret Extrusion Meltblown Die Head For Polypropylene.this machine can do chemical milling for 4200mm length and 0.8mm thickness stainless steel with high precision .
  • PCB alkaline etching machine
  • Model: GE-AE650
  • Working size: W650mm*L (L= length is not limited)
  • Machine process:Load → Ammonia etching →Regeneration System → pressure water washing → Squeeze→ Cold & Hot Dry → Unload
  • Machine dimension :8000*1700*1850mm
  • PCB alkaline etching machine for double-sided pcb machine or multi layer PCB or thin copper etching uses with high precision.This machine is chemical etching equipment use ammonia.
  • Flexible Cutting Dies Etching Machine
  • Model: GE-DB5060
  • Working size: 500mm*600mm/600*800mm/800*1000mm
  • Control system: Temperature, Speed, Pressure, Network Filter
  • Out size: 1850*1500*1550mm
  • flexible Dies Etching Machine is a photoengraving machines for Steel or high-carbon steel plate mold pretreating etching to advance following engraving processing. After etching, the cutting knife-edge and knife depth is etched out. Then CNC engraving Knife sharpening.
  • Hot Foil Stamping Dies Etching Machine
  • Model: GE-TB5060
  • Working size: 500mm*600mm/300*400mm/400*500mm
  • Control system: Temperature, Speed, Pressure, Network Filter
  • Out size: 1850*1500*1550mm
  • The Hot Foil Stamping Dies Etching Machine is special for stamping mold or hot stamping die. It can processing copperplate, zinc sheets, Magnesium dies,stencil-plate, printing plate and so on with high precision.
  • Plaque Etching & Engraving machines
  • Model:GE-SX650
  • Working width:650mm/1000mm/1220mm/1550mm (can be order)
  • Control system: Temperature, Speed, Pressure, Network Filter
  • Machine dimension :2550*1650*1550mm
  • this Plaque Etching & Engraving machines, photo chemical etching machine can be Photo etching process plaque ,nameplate,lable,metal business card, m Gift & Present & Specially designed, Mesh & grid & filter.
  • Embossed stainless steel press plate Etching Machine
  • Model: GE-EP1000
  • Working width:1550mm /1300mm/1000mm
  • Control system: Temperature, Speed, Pressure, Network Filter
  • Machine dimension :3500*2300*1850mm
  • This Embossed stainless steel press plate Etching Machine can be used to etching Deep embossed stainless steel press plate for hpl furniture . Etching Materials can be stainless steel, copper, aluminium and so on.
  • Decorative stainless steel sheet Etching Machine
  • Model: GE-DE1500
  • Working width:1550mm /1300mm(size can be order)
  • Control system: Temperature, Speed, Pressure, Network Filter
  • Machine dimension :20500*2300*1850mm
  • This Etching machines can be used to Etching whole size (1219*2438mm,or1500*3000mm) Decorative stainless steel sheet ,etching works for lift mirror hairline colored metal sheet.Materials can be stainless steel, copper, aluminium and so on.
Watch case Etching Machine

Watch case Etching Machine

  • Watch case Etching Machine
  • Model: GE-WS600
  • Working size: 600*600mm(other size can be order)
  • Control system: Temperature, Speed, Pressure, Network Filter
  • Out size: 1850*1500*1550mm
  • This Watch case Etching machine is a photoengraving machines for etching image and letter on surface of little rotundity workpieces such as watchcase ,lighter ,disc etc. The etching material can be stainless steel ,copper ,brass ,aluminium and so on .
  • Vertical chemical milling Machine
  • Model: GE-TS650
  • Etching area:650*650mm(THE SIZE CAN BE CUSTOMIZED)
  • Control system: Temperature, Speed, Pressure, Network Filter
  • Etching Pressure :1~3kg
  • Out size: 1650*1500*1550mm
  • This Vertical chemical milling Machine can be used used for photochemical milling Jewelry, crafts, filter meshes, seives, screens and grilles,which has small size and high speed.
