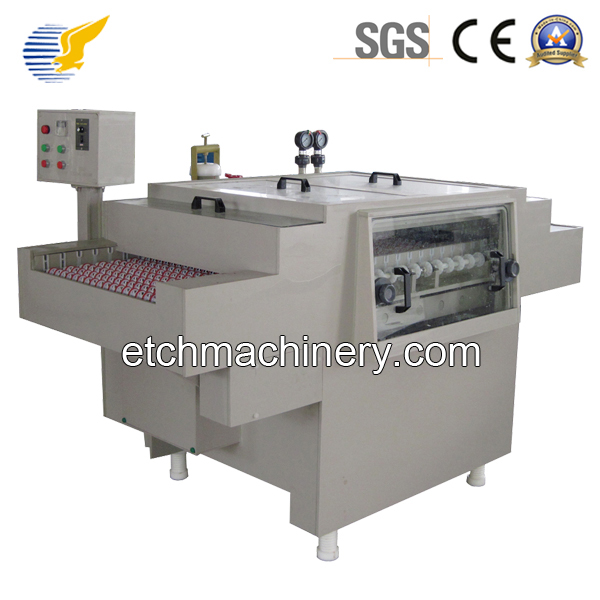

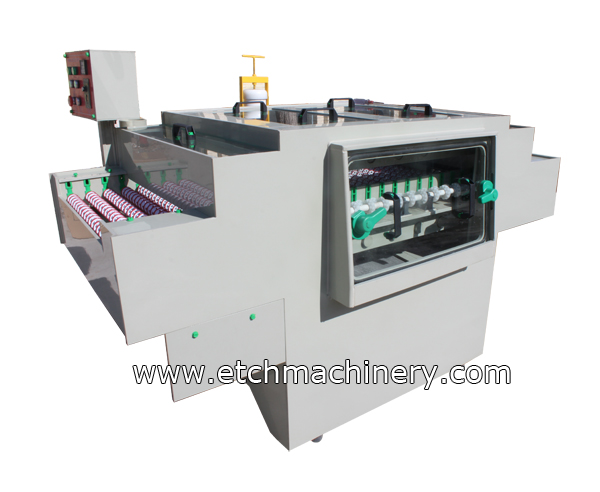

S650 Double Sided spray Etching Machine

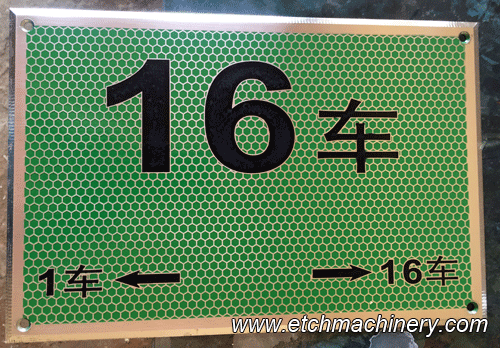

Features:This double spray etching machine is a chemical photoengraving processing equipments. It can do high-quality etching works of single etching or cut through metallic characters or graphics in metal workpieces. Such as nameplates and metal crafts engraving works.

Contact Us Regarding Product

Process flow: Load → Etching → Unload

Main technical parameter:

Power: 4.5KW/380V
Working size: 650*L mm(L= length is not limited)
Etching area length: 1000mm
Working Temp.: 38~65℃
Tolerance: 0.05mm
Etching type: PLT sprayer
Transfer type: PLT wheel
Outsize: 2150*1350*1250mm
weight: 480kg
Control System:
Speed Adjust system
Pressure Adjust System
Temperature control System(both Heater and cooler)
Network Filter System
High temperature (up to 100) resist German PP material
Long time Etching Ability
