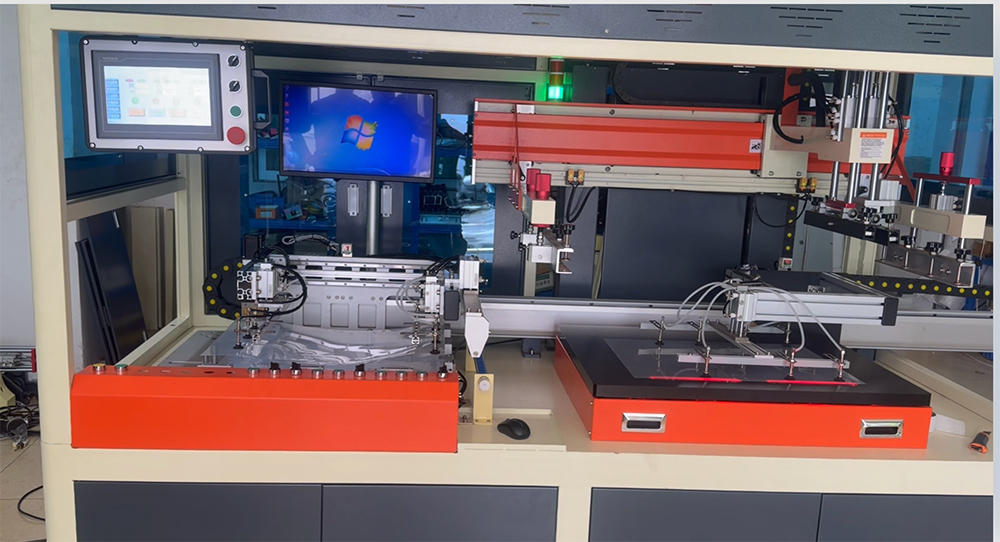

Double-Running-Table Silk Screen Printing Machine GE-VP60120D

Name: Double-Running-Table Silk Screen Printing Machine GE-VP60120D
Brand: Beijing Golden Eagle

What Is a Double-Running-Table Silk Screen Printing Machine (GE-VP60120)?

The Double-Running-Table Silk Screen Printing Machine GE-VP60120 is a high-throughput variant of the GE-VP60120 platform. It adds a second print table that runs in parallel with the primary one: while one panel is being printed, the operator unloads the finished panel and loads the next blank on the second table. The result is a non-stop load + print cycle with effectively zero waiting time between prints, raising real-world throughput close to the rated 1000 panels/hour.

The dual-table configuration is targeted at PCB and nameplate shops running two or three shifts a day, where the few seconds saved per cycle add up to a substantial productivity gain over a year. The rest of the machine is identical to the standard GE-VP60120: 600 × 1200 mm print area, ±0.05 mm registration, pneumatic squeegee drive, and full HMI recipe control.

Scope of application: PCB, FR4, solder-mask, photoresist, SMT solder paste, glass, optical disc, nameplate, film switch and other planar electronic substrates.

Beijing Golden Eagle manufactures the GE-VP60120D in Beijing. CE-certified, 12-month machine warranty, 24-month PLC/HMI warranty.

Process Flow

Load panel A — operator places blank PCB on table A while table B is printing.
Print panel B — table B completes its print cycle — squeegee stroke, flood stroke, screen lift.
Swap tables — the machine auto-cycles to table A; table B is now in load/unload position.
Unload panel B — operator removes the finished panel from table B; prints go to UV-cure or drying.
Align + print panel A — the screen prints panel A with the same recipe as panel B.
Repeat — cycle continues — print B, swap, print A, swap, etc.
Inspect + cure — finished panels are inspected visually or by AOI, then routed to the cure oven.

Technical Specifications

Parameter	Specification	Notes
Model	GE-VP60120D	Double-running-table variant
Max. printing area	600 × 1200 mm per table	Dual-table format
Max. printing speed	1000 pcs / hour	Recipe-dependent
Print accuracy	±0.05 mm	Mesh and substrate dependent
Squeegee drive	Pneumatic, 4.0–6.0 kgf/cm²	Clean dry air required
Number of tables	2 tables	A/B auto-cycle
Table change time	< 1.5 s	Pneumatic shuttle
Vacuum tables	2 independent vacuum chucks	Multi-zone zones on request
Screen mesh	77–200 mesh	Polyester standard
Power supply	380 V / 50 Hz, 2 kW	3-phase standard
Air supply	4.0–6.0 kgf/cm²	6–8 bar compressor
Machine dimension	2300 × 1300 × 1650 mm (L×W×H)	Larger than single-table

Why Choose This Machine?

Dual-table non-stop cycle — while one table prints, the other is loaded — eliminates dead time between cycles, +20–30% effective throughput.
Same print quality as standard GE-VP60120 — identical pneumatics, screen frame, and HMI recipe system — no compromise on ±0.05 mm registration.
Single operator, two panels — one operator easily keeps both tables fed — no need for a second attendant.
Recipe-based HMI control — pressure, speed, stroke, vacuum, table-cycle timing all stored as recipes — repeat identical jobs months later.
Compact per-panel footprint — despite dual tables, the GE-VP60120D is only 800 mm longer than the single-table version.

Frequently Asked Questions

What is the difference between GE-VP60120 and GE-VP60120D?

The GE-VP60120D is the double-running-table variant of the GE-VP60120. It has a second parallel print table that auto-cycles with the first, eliminating the load-unload dead time and raising effective throughput by 20–30%.

What is the real-world throughput?

Rated at 1000 panels/hour. With the dual-table format, real-world throughput typically runs at 850–950 panels/hour because the load/unload step is no longer the bottleneck.

What substrates can the GE-VP60120D print?

Same as the GE-VP60120 — PCB, FR4, glass, ceramic, optical disc, nameplate, adhesive labels, film switch, etc.

Does the dual table need more air supply?

No. Both tables share the same 4.0–6.0 kgf/cm² clean dry air supply. Air consumption is roughly the same as a single-table machine.

What warranty and lead time come with the GE-VP60120D?

12-month machine warranty and 24-month PLC/HMI warranty. Standard ship time 25–35 working days from order.
