PCB Production Line · Machine #28

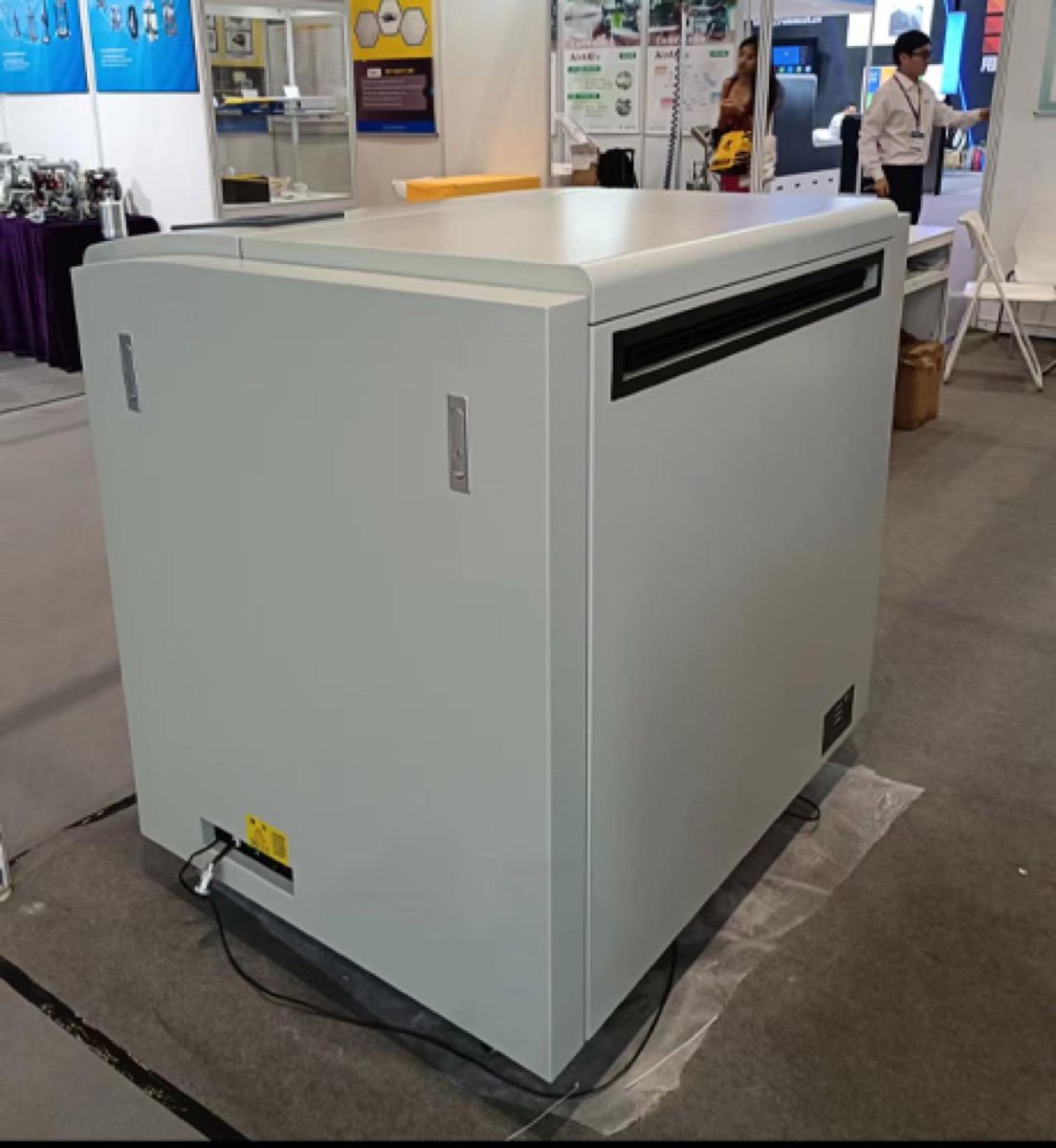

Film Plotter (Laser)
Model: JC6080
Photoplotter — Gerber film output at 4000–12000 dpi for imaging.
Request a quoteTechnical Parameters
| Structure | External drum scanning |
|---|---|
| Resolution | 4000 / 8000 / 12000 dpi |
| Plot area | 600 × 800 mm |
| Min line / space | 2 mil / 2 mil |
| Speed | 15 / 30 / 60 min |
| Positioning | ±0.03 mm |
This is a parameter-overview page. A more detailed product page with full specifications, optional configurations, and process recommendations is being prepared. In the meantime, please contact our engineers for the full datasheet and pricing.
