Industry Equipment Solution
Custom Etching Equipment Solution
Bespoke etching equipment for special products — irregular shapes, oversized parts, unusual chemistries, and pilot / R&D lines.
Production Process Flow
From raw material to finished part — the complete 4-step production line for custom equipment.
1
Requirements
Discuss your part & goals
2
Design
Propose a custom line
3
Manufacturing
Build to spec
4
Installation
On-site setup & training
Complete Equipment List
Every machine on the production line, with its function and link to the product page.
| # | Machine | Function on this line | |
|---|---|---|---|
| 01 | Custom Etching Machine (per spec) | Tailored to your part, material, and throughput | |
| 02 | Custom Conveyor Width / Length | Adapted for oversized or non-standard sheets | |
| 03 | Custom Chemistry Circuit | Etchant + regeneration per your material | |
| 04 | Custom Automation | Loading / unloading / inspection per spec |
Key Production Parameters
What to specify when requesting a quote for this production line.
ProcessPer spec
MaterialsPer spec
Panel sizeUp to 2.0 m wide
ChemistryPer spec
ThroughputPer spec
AutomationPer spec
Lead time8 – 16 weeks
ServiceWorldwide on-site install
Sample Products
Examples of parts made on a typical custom equipment line.
Bespoke line in workshop
Full custom CE line

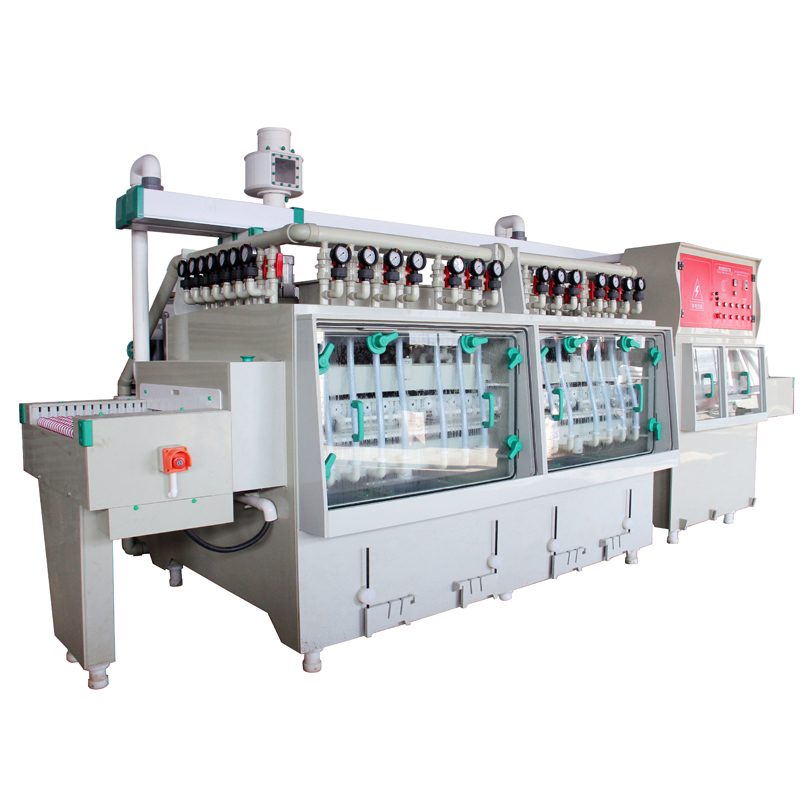

Special-purpose etcher
Conveyor customization
Related Technical Articles
Read more about the equipment and processes in this solution.
Ready to plan your custom equipment line?
Send us your part samples, target throughput, and facility constraints. Our engineers will send back a configured BOM, layout sketch, and quote within 48 hours.
Send your requirements
