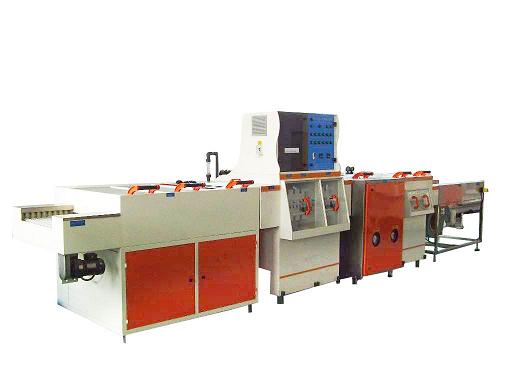

Tin stripping Machine
Features: This machine is applies to remove protective coating after etching with special nozzle arranged which can quickly remove tin-lead protective coatig.
Process flow: Load → Tin stripping → Recycle water washing1&2 → running water washing →dry plate combination →Unload
Main technical parameter:
size of machine:L6500*W1600*H1980mm
Power:380V/50HZ/60HZ
Working width:650mm
Working height:850mm (+/50mm )
Min / Max board size:650*460mm / 80*80mm
Automatic Control System:
Working Speed Adjust system
Pressure Adjust System
Temperature control System
High temperature (up to 100) resists German PP material
Product Image Details
Transport Conveyor with Wheels, Rollers
control panel
High temperature (up to 100) resist German PP material
Pressure gauge & pump
