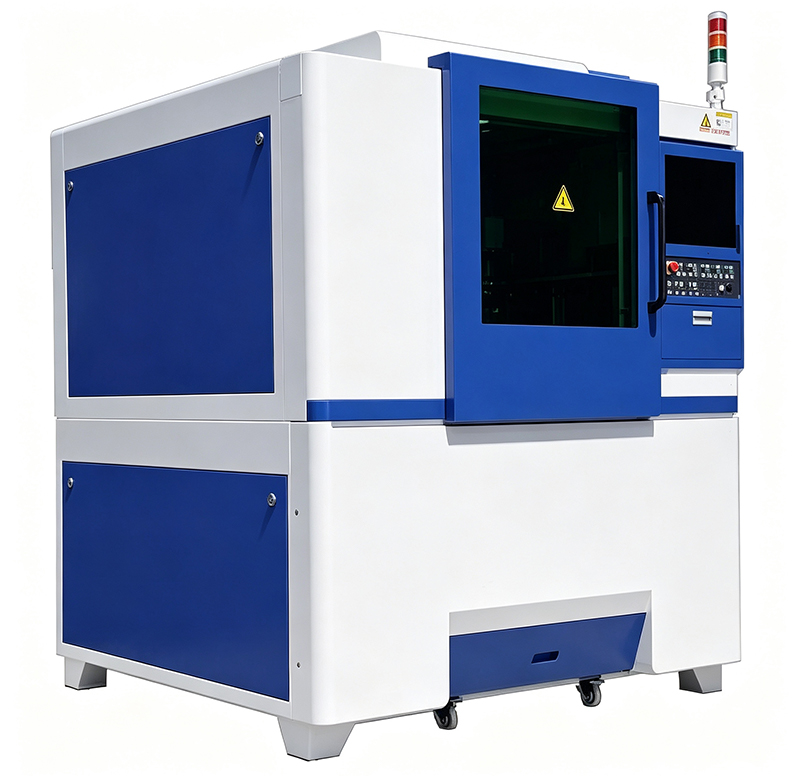

Copper & Aluminum PCB Laser Cutting Machine

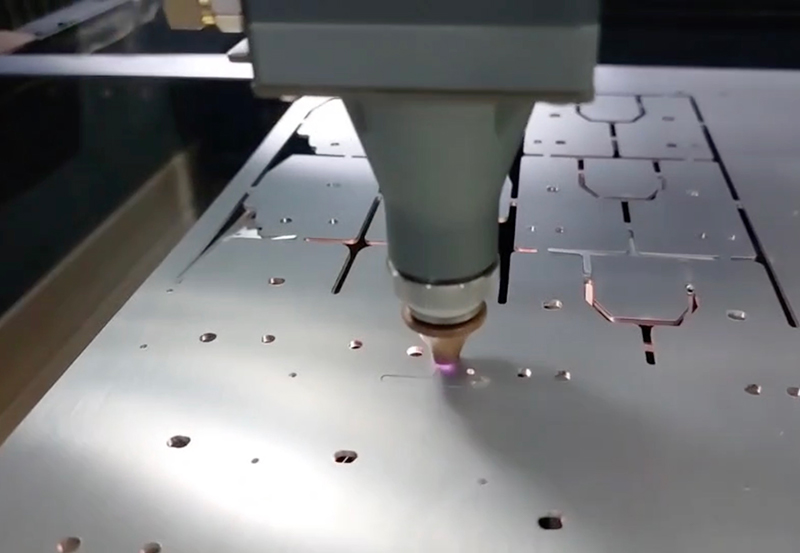

The GE-LCB6080 is a fiber laser cutting machine purpose-built for metal-core PCB. Because the laser is non-contact, the board takes no mechanical force — so cut boards are stress-free, burr-free and without blackening, with very little deformation and a kerf of only 0.05–0.15 mm. It is widely used to cut and depanel aluminum substrate (LED aluminum boards), copper substrate, FR4 and irregular boards.
Product Features:
1. Non-contact cutting — no mechanical stress, no burr, no blackening, minimal deformation.
2. Narrow kerf 0.05–0.15 mm with a small heat-affected zone and high precision.
3. Marble platform + linear-motor drive — anti-vibration, temperature-stable, positioning speed 60 m/min.
4. CCD visual positioning for accurate machining position and higher fault tolerance.
5. Customized laser head optimized for highly reflective copper and aluminum.
6. Self-designed double-layer sealed guide rail keeps dust off the linear motor & rail.
7. Upper air-shower structure controls dust; matched suction device.
8. Universal software with automatic cutting-path optimization; supports DXF and Gerber.
9. Electronically controlled automatic fixture — one-click width change with auto lifting cylinder.
Main technical parameters (GE-LCB6080):
- Model: GE-LCB6080
Laser source: Fiber laser, 500W / 1000W / 1500W / 2000W / 3000W (optional)
Wavelength: 1070 ± 10 nm
Work area: 600 × 800 mm
Max positioning speed: 60 m/min
Max acceleration: 1G
Cutting kerf: 0.05–0.15 mm
Minimum line width: 0.15 mm
X/Y positioning accuracy: ±0.02 mm
X/Y repeat positioning accuracy: ±0.005 mm
Recommended cutting thickness: Aluminum ≤6mm · Copper ≤2mm
Motion platform: Marble platform + linear motor
Positioning: CCD visual positioning
Machine weight: about 1800 KG
Power supply: AC 220V / 380V 50/60Hz

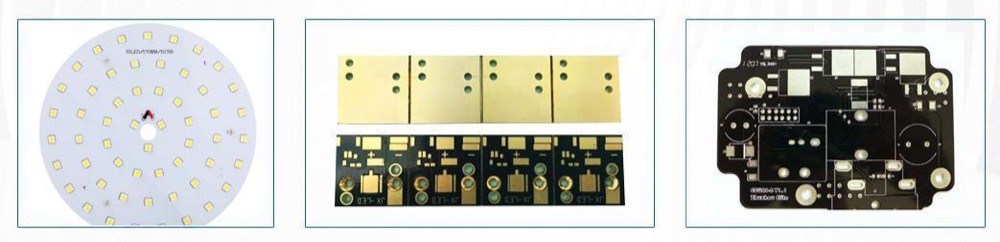

Applications
LED Aluminum Boards
Cutting and depaneling of MCPCB / LED aluminum substrate boards
Irregular Shapes
Free-form and curved outlines that routing or punching cannot do cleanly
Copper & FR4
Copper substrate, FR4 and flexible boards with smooth, burr-free edges
Low-Volume High-Mix
No tooling — change the design in software, ideal for prototypes & small batches
Why Choose the Golden Eagle PCB Laser Cutting Machine?
Metal-core PCBs such as LED aluminum boards are hard to cut cleanly with mechanical tools — routing leaves burrs and stress, punching needs dies, and both can deform thin boards. The GE-LCB6080 solves this with non-contact fiber laser cutting: a narrow 0.05–0.15 mm kerf, smooth burr-free edges and minimal deformation, with the design changed in software rather than tooling.
✓
Stress-free, burr-free edges: non-contact cutting leaves no mechanical stress, no shear burr and no blackening, so boards are ready for assembly without secondary deburring.
✓
Precision & stability: a marble platform with linear-motor drive, CCD vision and a customized laser head deliver ±0.02 mm positioning (±0.005 mm repeat) at up to 60 m/min.
✓
Flexible power options: 500–3000 W fiber laser configured to your material and thickness — aluminum ≤6mm, copper ≤2mm — with free training and one-year warranty.
Frequently Asked Questions
- What materials and thickness can it cut? Mainly copper and aluminum substrate PCB (MCPCB / LED aluminum boards) and FR4, plus stainless steel, iron and brass. Typical aluminum ≤6mm, copper ≤2mm by laser power.
- Why laser vs routing / V-cut / punching? Non-contact: no stress, no burr, no blackening, minimal deformation, 0.05–0.15mm kerf; no tooling, design changed in software — ideal for aluminum boards, irregular shapes and high-mix runs.
- How wide is the kerf and will it deform? Kerf about 0.05–0.15mm, small heat-affected zone, little deformation; smooth, burr-free edge; minimum line width 0.15mm.
- How do I choose the laser power? 500–1000W for thin aluminum/LED boards; 2000–3000W for thicker aluminum (≤6mm); QCW750 or high power for copper. Send material & thickness for configuration.
