PCB brushing machine is used for PCB surface cleaning, deburring and oxidation removal. It is an important PCB cleaning machine in PCB manufacturing process to improve surface quality and production efficiency.
Automatic PCB Brush Cleaning Machine
Application:
This machine is specialized equipment for PCB surface treatment process such as brushing,grinding and cleaning. For pre/mid/post PCB copper surface treatment.
This machine is often used in these material such as CEM ,FR4,PCB,aluminum, stainless steel plate, copper plate and sheet metal materials and copper clad, PP board, resin board, composite board surface polishing treatment.It is also applied for PTH,copper plating,tin plating and ink printing in double-sided board pre-treatment process.
Process flow: Load → Acid Washing→ Pressure Water Washing→ Running Water Washing → brush → Pressure Water Washing → Running Water Washing → Blot Up → Cold & Hot Dry → Unload
A PCB brushing machine is a type of PCB cleaning equipment used to remove oxidation, dust, burrs and contaminants from printed circuit boards. It is widely used before etching, plating and solder mask processes.
Applications
PCB surface cleaning before etching
PCB deburring after drilling
Oxidation removal on copper surface
Surface preparation before plating

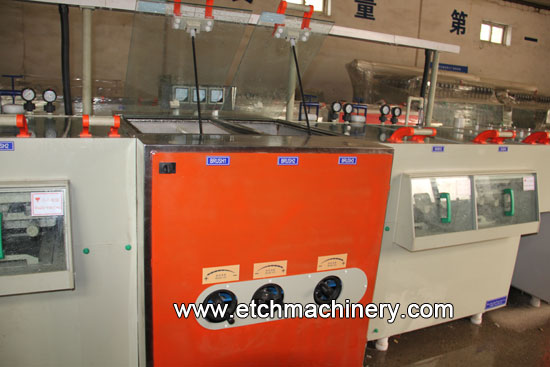

Automatic PCB Brushing Machine
This automatic PCB brushing machine is designed for PCB surface treatment such as brushing, grinding and cleaning. It supports FR4, CEM, aluminum PCB and copper clad boards.
Working Width: 650mm
Brushing Roller: 6 rollers
Process Flow: Cleaning → Brushing → Washing → Drying

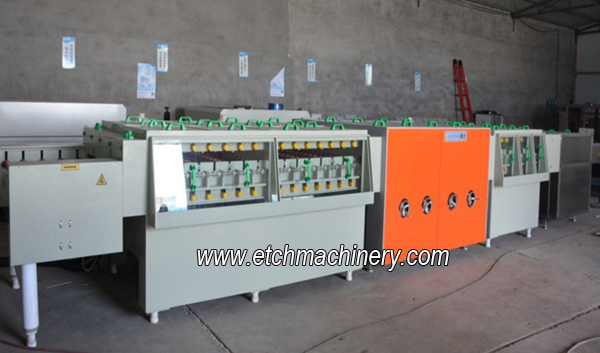

Burr removal machine, a semi-automatic grinding machine for double board to be deburred after drilling. Remove burrs after drilling.Reduce copper thickness after electroplating.Remove copper particles from electroplating.Remove glue residue . Remove copper oxidation.
Working process:Loading-brushing(2 rollers)-washing-drying-unloading
This PCB brushing machine is specifically designed for surface treatment of printed circuit boards, including copper clad laminates (CCL), resin substrates, and composite panels. It performs critical pretreatment for processes such as double-sided PCB fabrication, tin-plated copper surfaces, and solder mask/printing ink adhesion enhancement.
Process flow: Load → Double-sided brushing → water Washing → Unload
This PCB Brushing machine can remove the oxide and dust of PCB with high speed and efficacy.
And it can save more power and water advance for it rationalization structure.
Process flow: Load →high pressure washing→Double-sided brushing → water Washing → drying→Unload
This production line is for cleaning stainless steel car Cylinder gasket and stainless steel thin material (thickness 0.1mm),Remove oil from both sides, wash and dry.
PCB Cleaning Machines utilize ultrasonic, spray, or vapor-phase methods to remove flux residues, dust, and contaminants from circuit boards, ensuring optimal electrical performance. Deburring & Brushing Equipment mechanically or chemically smooths edges of metal/plastic components, enhancing precision and safety. PCB Grinding Machines provide surface leveling or repair for multilayer PCBs through precision abrasion.
Key Features of PCB Brushing Cleaning Machines:
PCB Brushing Cleaning Machines combine mechanical brushing with advanced cleaning technologies to effectively remove stubborn contaminants from printed circuit boards.Key features include:
Multi-Stage Brushing System:
Utilizes rotating nylon or abrasive brushes to scrub away flux residues, oxidation, and debris without damaging delicate traces.
Adjustable Pressure Control: Precision pressure settings accommodate different PCB thicknesses and component densities.
Integrated Cleaning Fluids: Compatible with deionized water, solvents, or eco-friendly cleaning agents for enhanced contaminant removal.
Conveyor Automation: Continuous belt systems ensure consistent throughput for high-volume production lines.
Modular Design: Allows customization for rigid/flex PCBs or hybrid cleaning (brushing + ultrasonic/spray).
Ideal for high-reliability applications in automotive, aerospace, and industrial electronics, these machines balance thorough cleaning with surface protection.
Stainless Steel/Metal Sheet Brushing Cleaning Machine is engineered to deliver high-efficiency surface treatment for metal fabrication industries. Key features include:
Multi-Directional Brush Heads: Customizable rotating brushes (nylon, abrasive, or wire) for uniform deburring, descaling, and polishing.
Adjustable Speed & Pressure: Precision control adapts to sheet thickness (0.5–10mm) and material hardness (e.g., 304/316 stainless steel, aluminum).
Integrated Filtration System: Recirculates cleaning fluids (water-based solutions or mild solvents) to reduce waste and costs.
Automated Conveyor Belt: Handles sheets up to 2m wide with variable speed (1–10m/min) for continuous production.
Corrosion-Resistant Construction: Made of stainless steel/SUS304 framework to withstand harsh environments.
Ideal for food processing, automotive, and architectural metalwork, this machine ensures OSHA-compliant, scratch-free finishes while boosting productivity.
